產品特性：
廣泛的金屬(黃銅，鋼和不銹鋼)和密封材料允許他們與大多數流體兼容。
鋼球鎖緊機構具有高數量的鋼球來分配工作負荷，保證了接頭的低磨損和良好的對準。
無閥門設計允許最大流量，也便于容易清洗
應用場合：
適用于高壓水和蒸汽清洗設備，地毯清洗機，食品工業，染料轉移線和模具冷卻線。
產品規格：
材質：主體優質鋼鍍鋅
密封件: 標準NBR丁腈橡膠， FKM,EPDM可供選擇
背托環: PTFE
工作溫度：用標準密封圈 -25℃ + 125℃

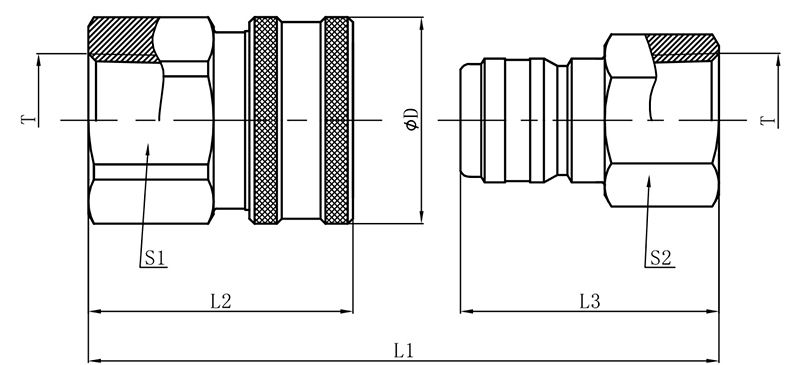

| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ?D | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 52.5 | 37.3 | 34 | 24 | 20.5 | 17.5 | 1/4"NPT | KSST-04F-NPT | KSST-04M-NPT |
| 06 | 10 | 55.7 | 37.5 | 40 | 28 | 25.4 | 20.6 | 3/8"NPT | KSST-06F-NPT | KSST-06M-NPT |
| 08 | 12.5 | 63 | 41.3 | 44.6 | 33.5 | 28.5 | 25.4 | 1/2"NPT | KSST-08F-NPT | KSST-08M-NPT |
| 12 | 20 | 78 | 53.2 | 52 | 41.5 | 38 | 30 | 3/4"NPT | KSST-12F-NPT | KSST-12M-NPT |
| 16 | 25 | 83 | 53 | 59.6 | 51 | 44.5 | 38 | 1"NPT | KSST-16F-NPT | KSST-16M-NPT |
| 20 | 31.5 | 89.5 | 62 | 60.3 | 64 | 50 | 50 | 1-1/4"NPT | KSST-20F-NPT | KSST-20M-NPT |
| 24 | 40 | 100 | 73.6 | 70.2 | 75 | 69.7 | 57 | 1-1/2"NPT | KSST-24F-NPT | KSST-24M-NPT |
| 32 | 50 | 107 | 76 | 76 | 94.3 | 89 | 69.7 | 2"NPT | KSST-32F-NPT | KSST-32M-NPT |

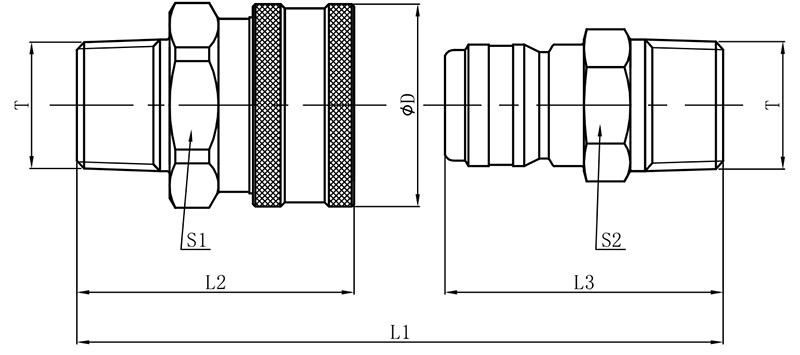

| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ?D | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 63.2 | 44 | 38 | 24 | 20.5 | 14.3 | 1/4"NPT | KSST-04F-NPT-M | KSST-04M-NPT-M |
| 06 | 10 | 66.2 | 44 | 44 | 28 | 25.4 | 17.5 | 3/8"NPT | KSST-06F-NPT-M | KSST-06M-NPT-M |
| 08 | 12.5 | 75.3 | 49.6 | 48.6 | 33.5 | 29 | 22 | 1/2"NPT | KSST-08F-NPT-M | KSST-08M-NPT-M |
| 12 | 20 | 86.5 | 56.8 | 57 | 41.5 | 38 | 27 | 3/4"NPT | KSST-12F-NPT-M | KSST-12M-NPT-M |
| 16 | 25 | 95.7 | 64.3 | 61 | 51 | 44.4 | 34 | 1"NPT | KSST-16F-NPT-M | KSST-16M-NPT-M |
技術特性：
| 規格 | 最大工作壓力 | 額定流量 | ||||
| 力浦液壓 | 國際標準 | (bar) | (l/m) | |||
| 04 | 6.3 | 370 | 6 | |||
| 06 | 10 | 370 | 12 | |||
| 08 | 12.5 | 180 | 12 | |||
| 12 | 20 | 180 | 28 | |||
| 16 | 25 | 130 | 50 | |||
| 20 | 31.5 | 130 | 76 | |||
| 24 | 40 | 130 | 100 | |||
| 32 | 50 | 130 | 120 | |||
