手柄
材質: 鋼鍍鋅

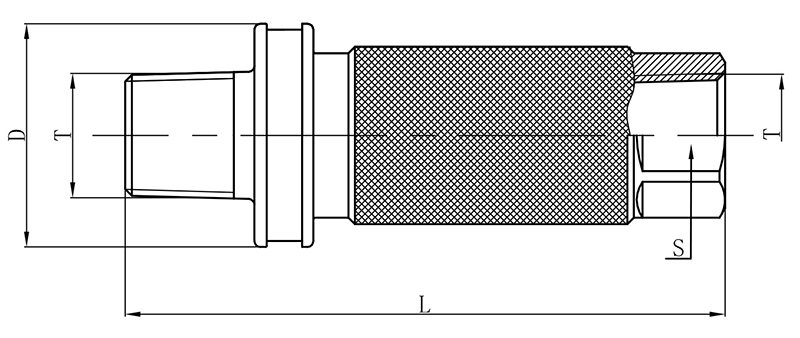

| 力浦液壓 | 國際標準 | L | ?D | S | T | 產品編號 |
| 08 | 12.5 | 102.0 | 38.0 | 25.4 | 1/2"NPT | KS-HG-08-NPT |
| 1/2"BSP | KS-HG-08-BSP | |||||
| 93.0 | 3/4"UNF | KS-HG-08-UNF34 | ||||
| 12 | 20 | 108.0 | 38.0 | 33.3 | 3/4"NPT | KS-HG-12-NPT |
| 107.5 | 50.0 | 1-1/16"UNF | KS-HG-12-UNF1116 |

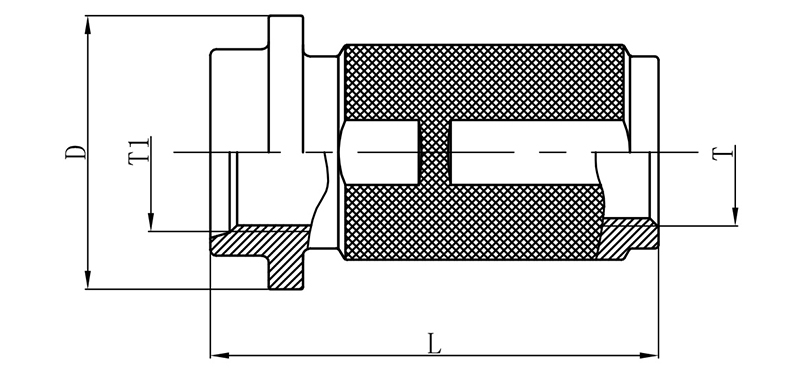

| 力浦液壓 | 國際標準 | L | T | T1 | 產品編號 |
| 08 | 12.5 | 63 | 1/2"BSP | M18*1.5 | KS-HG-AL-08-M1815 |
| M22*1.5 | KS-HG-AL-08-M2215 |
