KSS-Z返回
Parker H/PH
DNP PNV
Faster TNV
Holmbury HTN
Dixon V
Snap Tite H/1H
- 應用&特性
- 圖紙&規格
- 技術&帽塞
產品特性：
廣泛的金屬(鋼&不銹鋼)和密封材料允許他們與大多數流體兼容。
特殊閥芯設計使得連接和斷開操作更加簡單
雙向流
塑料防塵帽塞
應用場合：
設計用于一般液壓系統，機床，測試設備，農業，和其他移動液壓
產品規格：
材質：主體優質鋼鍍鋅
密封件: 標準NBR丁腈橡膠， FKM,EPDM可供選擇
背托環: PTFE
工作溫度：用標準密封圈 -25℃ + 125℃

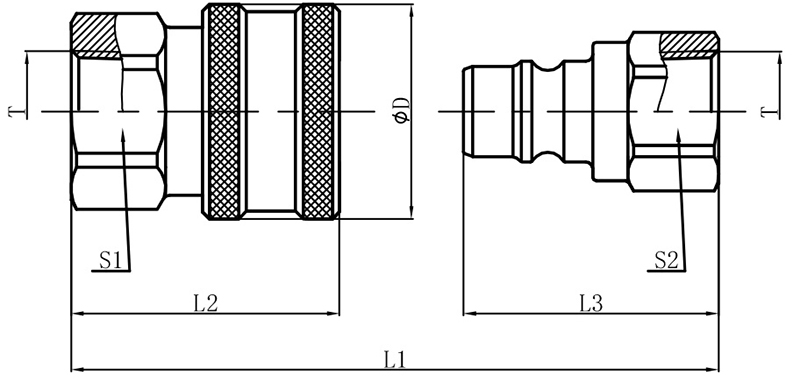

| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ?D | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 52.7 | 34.4 | 32.6 | 25.6 | 22.0 | 17.0 | 1/4"NPT | KSS-Z-04F-NPT | KSS-Z-04M-NPT |
| 1/4"BSP | KSS-Z-04F-BSP | KSS-Z-04M-BSP | ||||||||
| 06 | 10 | 57.0 | 38.2 | 36.5 | 30.6 | 25.4 | 20.5 | 3/8"NPT | KSS-Z-06F-NPT | KSS-Z-06M-NPT |
| 3/8"BSP | KSS-Z-06F-BSP | KSS-Z-06M-BSP | ||||||||
| 08 | 12.5 | 67.6 | 41.5 | 43.7 | 35.0 | 30.0 | 25.4 | 1/2"NPT | KSS-Z-08F-NPT | KSS-Z-08M-NPT |
| 1/2"BSP | KSS-Z-08F-BSP | KSS-Z-08M-BSP | ||||||||
| 12 | 20 | 74.4 | 49.0 | 47.3 | 42.0 | 38.0 | 30.0 | 3/4"NPT | KSS-Z-12F-NPT | KSS-Z-12M-NPT |
| 3/4"BSP | KSS-Z-12F-BSP | KSS-Z-12M-BSP | ||||||||
| 16 | 25 | 81.8 | 53.0 | 51.0 | 52.0 | 46.0 | 38.0 | 1"NPT | KSS-Z-16F-NPT | KSS-Z-16M-NPT |
| 1"BSP | KSS-Z-16F-BSP | KSS-Z-16M-NPT | ||||||||
| 32 | 50 | 112 | 76.5 | 70 | 90 | 75 | 75 | 2"NPT | KSS-Z-32F-NPT | KSS-Z-32M-NPT |
| 2"BSP | KSS-Z-32F-BSP | KSS-Z-32M-NPT |
技術特性：
| 規格 | 最大工作壓力 | 額定流量 | 最大流量 | 最小爆破壓力 | ||||
| 連接下 | ||||||||
| 力浦液壓 | 國際標準 | (bar) | (l/m) | (l/m) | (bar) | |||
| 04 | 6.3 | 700 | 12 | 24 | 2500 | |||
| 06 | 10 | 700 | 23 | 46 | 1800 | |||
| 08 | 12.5 | 700 | 45 | 90 | 1700 | |||
| 12 | 20 | 600 | 106 | 220 | 1750 | |||
| 16 | 25 | 400 | 189 | 380 | 1250 | |||

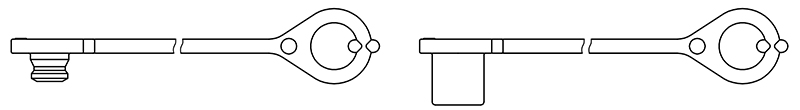

防塵帽塞：
| 力浦液壓 | 國際標準 | 母接頭防塵塞 | 公接頭防塵帽 | 材質 | 顏色 | ||
| 04 | 6.3 | KSS-04-PDP | KSS-04-PDC | 塑料 | 黑色 | ||
| 06 | 10 | KSS-06-PDP | KSS-06-PDC | 塑料 | 黑色 | ||
| 08 | 12.5 | KSS-08-PDP | KSS-08-PDC | 塑料 | 黑色 | ||
| 12 | 20 | KSS-12-PDP | KSS-12-PDC | 塑料 | 黑色 | ||
| 16 | 25 | KSS-16-PDP | KSS-16-PDC | 塑料 | 黑色 | ||
