- 應用&特性
- 圖紙&規格
- 技術&帽塞
產品特性：
按照國際標準7241-1A標準生產
針閥設計可以加大流體的通過量
鎖定球系統可快速連接和斷開接頭
雙向流
可提供塑料和鋁制防塵帽塞
應用場合：
多功能KSA系列廣泛應用于各種液壓應用，包括農業應用，移動和建筑設備，工廠內機械，包括液壓動力單元和手動工具。
在任何需要連接或斷開流體輸送管線以進行設備操作或維護的地方都可以找到這種接頭。
產品規格：
標準: 國際標準 7241-1A
材質: 主體部件不銹鋼316
鋼球: 不銹鋼316
彈簧: 不銹鋼304
密封件: 標準FKM丁腈橡膠， NBR,EPDM可供選擇
背托環: PTFE
工作溫度: 用標準密封圈 -25℃ + 200℃

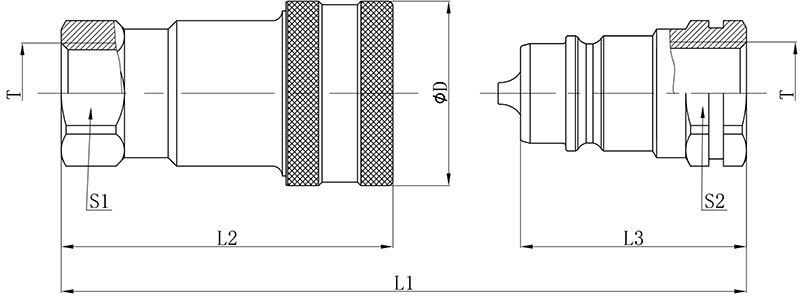

| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ?D | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 70.5 | 49.2 | 35.0 | 26.0 | 19.0 | 19.0 | 1/4"BSP | KSA-SS-04F-BSP | KSA-SS-04M-BSP |
| 1/4"NPT | KSA-SS-04F-NPT | KSA-SS-04M-NPT | ||||||||
| 06 | 10 | 85.7 | 60.5 | 42.5 | 30.5 | 22.0 | 22.0 | 3/8"BSP | KSA-SS-06F-BSP | KSA-SS-06M-BSP |
| 3/8"NPT | KSA-SS-06F-NPT | KSA-SS-06M-NPT | ||||||||
| 08 | 12.5 | 93.0 | 68.5 | 46.5 | 38.0 | 27.0 | 27.0 | 1/2"BSP | KSA-SS-08F-BSP | KSA-SS-08M-BSP |
| 1/2"NPT | KSA-SS-08F-NPT | KSA-SS-08M-NPT | ||||||||
| 12 | 20 | 114.2 | 84.1 | 57.1 | 46.0 | 34.0 | 34.0 | 3/4"BSP | KSA-SS-12F-BSP | KSA-SS-12M-BSP |
| 3/4"NPT | KSA-SS-12F-NPT | KSA-SS-12M-NPT | ||||||||
| 16 | 25 | 131.8 | 99.5 | 65.5 | 52.0 | 41.0 | 41.0 | 1"BSP | KSA-SS-16F-BSP | KSA-SS-16M-BSP |
| 1"NPT | KSA-SS-16F-NPT | KSA-SS-16M-NPT | ||||||||
| 20 | 31.5 | 148.0 | 116.0 | 74.0 | 69.5 | 50.0 | 50.0 | 1-1/4"BSP | KSA-SS-20F-BSP | KSA-SS-20M-BSP |
| 1-1/4"NPT | KSA-SS-20F-NPT | KSA-SS-20M-NPT | ||||||||
| 24 | 40 | 168.0 | 133.2 | 84.0 | 83.0 | 60.0 | 60.0 | 1-1/2"BSP | KSA-SS-24F-BSP | KSA-SS-24M-BSP |
| 1-1/2"NPT | KSA-SS-24F-NPT | KSA-SS-24M-NPT | ||||||||
| 32 | 50 | 180.4 | 150.6 | 90.0 | 101.0 | 70.0 | 70.0 | 2"BSP | KSA-SS-32F-BSP | KSA-SS-32M-BSP |
| 2"NPT | KSA-SS-32F-NPT | KSA-SS-32M-NPT |
技術特性：
| 規格 | 最大工作壓力 | 額定流量 | 最大流量 | 最小爆破壓力 | 液體溢出量 | ||||||
| 接頭體 | 接頭套 | 連接下 | |||||||||
| 力浦液壓 | 國際標準 | (bar) | (l/m) | （l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 450 | 12 | 17 | 3200 | 2900 | 2900 | 0.5 | |||
| 06 | 10 | 300 | 23 | 46 | 1250 | 1250 | 1300 | 1.9 | |||
| 08 | 12.5 | 300 | 45 | 90 | 1200 | 1200 | 1350 | 2.7 | |||
| 12 | 20 | 250 | 106 | 190 | 800 | 1000 | 1100 | 9.3 | |||
| 16 | 25 | 200 | 189 | 280 | 600 | 650 | 850 | 19 | |||
| 20 | 31.5 | 100 | 288 | 480 | 400 | 400 | 400 | 30 | |||
| 24 | 40 | 80 | 379 | 700 | 320 | 320 | 320 | 54 | |||
| 32 | 50 | 60 | 757 | 1000 | 250 | 250 | 250 | 120 | |||
防塵帽塞：
| 力浦液壓 | 國際標準 | 母接頭防塵塞 | 公接頭防塵帽 | 材質 | 顏色 | |||
| 04 | 6.3 | KSA-04-PDP | KSA-04-PDC | 塑料 | 紅色 | |||
| 06 | 10 | KSA-06-PDP | KSA-06-PDC | 塑料 | 紅色 | |||
| 08 | 12.5 | KSA-08-PDP | KSA-08-PDC | 塑料 | 紅色 | |||
| 12 | 20 | KSA-12-PDP | KSA-12-PDC | 塑料 | 紅色 | |||
| 16 | 25 | KSA-16-PDP | KSA-16-PDC | 塑料 | 紅色 | |||
| 力浦液壓 | 國際標準 | 母接頭防塵塞 | 公接頭防塵帽 | 材質 | |||
| 04 | 6.3 | KSA-04-ADP | KSA-04-ADC | 鋁 | |||
| 06 | 10 | KSA-06-ADP | KSA-06-ADC | 鋁 | |||
| 08 | 12.5 | KSA-08-ADP | KSA-08-ADC | 鋁 | |||
| 12 | 20 | KSA-12-ADP | KSA-12-ADC | 鋁 | |||
| 16 | 25 | KSA-16-ADP | KSA-16-ADC | 鋁 | |||
| 20 | 31.5 | KSA-20-ADP | KSA-20-ADC | 鋁 | |||
| 24 | 40 | KSA-24-ADP | KSA-24-ADC | 鋁 | |||
| 32 | 50 | KSA-32-ADP | KSA-32-ADC | 鋁 | |||
