產品特性：
按照國際標準5675標準生產
閥芯有針閥和球閥可供選擇,針閥可與 KSA/KSW-V-08M互換
鎖定球系統可快速連接和斷開接頭
雙向流
應用場合：
該系列主要應用于農業設備，移動和建筑設備。
產品規格：
標準: 國際標準 5675
材質:主體優質鋼鍍鋅
密封件: 標準NBR丁腈橡膠， FKM,EPDM可供選擇
背托環: PTFE
工作溫度: 用標準密封圈 -25℃ + 125℃

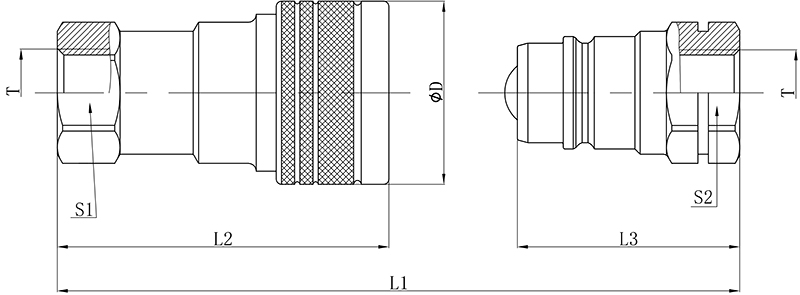

| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ?D | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 73.5 | 55.5 | 35.0 | 28.0 | 19.0 | 19.0 | 1/4"BSP | KSNS-04F-BSP | KSNS-04M-BSP |
| 1/4"NPT | KSNS-04F-NPT | KSNS-04M-NPT | ||||||||
| 9/16"UNF | KSNS-04F-UNF916 | KSNS-04M-UNF916 | ||||||||
| 06 | 10 | 85.5 | 63.5 | 42.5 | 35.0 | 24.0 | 24.0 | 3/8"BSP | KSNS-06F-BSP | KSNS-06M-BSP |
| 3/8"NPT | KSNS-06F-NPT | KSNS-06M-NPT | ||||||||
| 08 | 12.5 | 93.0 | 68.5 | 46.5 | 38.0 | 27.0 | 27.0 | 1/2"BSP | KSNS-08F-BSP | KSNS-08M-BSP |
| 1/2"BSPT | KSNS-08F-BSPT | KSNS-08M-BSPT | ||||||||
| 1/2"NPT | KSNS-08F-NPT | KSNS-08M-NPT | ||||||||
| 3/4"UNF | KSNS-08F-UNF34 | KSNS-08M-UNF34 | ||||||||
| 7/8"UNF | KSNS-08F-UNF78 | KSNS-08M-UNF78 | ||||||||
| M18*1.5 | KSNS-08F-M1815 | KSNS-08M-M1815 | ||||||||
| M20*1.5 | KSNS-08F-M2015 | KSNS-08M-M2015 | ||||||||
| M22*1.5 | KSNS-08F-M2215 | KSNS-08M-M2215 | ||||||||
| 12 | 20 | 113.5 | 84.3 | 57.5 | 48.0 | 34.0 | 34.0 | 3/4"BSP | KSNS-12F-BSP | KSNS-12M-BSP |
| 3/4"NPT | KSNS-12F-NPT | KSNS-12M-NPT | ||||||||
| 16 | 25 | 131.5 | 99.5 | 65.5 | 52.0 | 41.0 | 41.0 | 1"BSP | KSNS-16F-BSP | KSNS-16M-BSP |
| 1"NPT | KSNS-16F-NPT | KSNS-16M-NPT |
技術特性：
| 規格 | 最大工作壓力 | 額定流量 | 最大流量 | 最小爆破壓力 | 液體溢出量 | ||||||
| 接頭體 | 接頭套 | 連接下 | |||||||||
| 力浦液壓 | 國際標準 | (bar) | (l/m) | (l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 300 | 12 | 20 | 1200 | 1200 | 1500 | 0.5 | |||
| 06 | 10 | 250 | 23 | 35 | 1000 | 1000 | 1600 | 1.4 | |||
| 08 | 12.5 | 200 | 30 | 55 | 800 | 950 | 1300 | 1.9 | |||
| 12 | 20 | 200 | 60 | 120 | 800 | 1100 | 1200 | 4.6 | |||
| 16 | 25 | 200 | 80 | 160 | 850 | 1100 | 1000 | 5.9 | |||
防塵帽塞：
| 力浦液壓 | 國際標準 | 母接頭防塵塞 | 公接頭防塵帽 | 材質 | 顏色 | ||
| 04 | 6.3 | KSNS-04-PDP | KSNS-04-PDC | 塑料 | 紅色 | ||
| 06 | 10 | KSNS-06-PDP | KSNS-06-PDC | 塑料 | 紅色 | ||
| 08 | 12.5 | KSNS-08-PDP | KSNS-08-PDC | 塑料 | 紅色 | ||
