產品特性：
可與KSNV接頭體連接
雙止閥螺紋連接
自鎖連接機構，防止振動造成的意外斷開。
螺紋系統允許在殘壓下的螺紋連接
KSG4&KSG6的防塵帽塞可通用
應用場合：
該系列在農業的高壓脈沖中提供了廣泛的應用
產品規格：

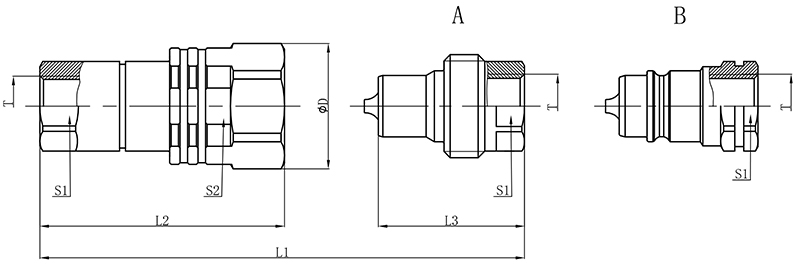

KSG4接頭體B類型同KSNV系列設計
材質:主體優質鋼鍍鋅
密封件: 標準NBR丁腈橡膠， FKM,EPDM可供選擇
背托環: PTFE
工作溫度: 用標準密封圈 -25℃ + 125℃
| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ?D | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 71.0 | 65.5 | 33.0 | 30.0 | 19.0 | 27.0 | 1/4"BSP | KSG4-04F-BSP | KSG4-04M-BSP |
| 1/4"NPT | KSG4-04F-NPT | KSG4-04M-NPT | ||||||||
| 06 | 10 | 83.3 | 76.0 | 40.5 | 38.0 | 24.0 | 34.0 | 3/8"BSP | KSG4-06F-BSP | KSG4-06M-BSP |
| 3/8"NPT | KSG4-06F-NPT | KSG4-06M-NPT | ||||||||
| 08 | 12.5 | 95.5 | 82.0 | 49.0 | 42.0 | 27.0 | 38.0 | 1/2"BSP | KSG4-08F-BSP | KSG4-08M-BSP |
| 1/2"NPT | KSG4-08F-NPT | KSG4-08M-NPT | ||||||||
| 12 | 20 | 117.0 | 105.0 | 62.0 | 55.0 | 34.0 | 50.0 | 3/4"BSP | KSG4-12F-BSP | KSG4-12M-BSP |
| 3/4"NPT | KSG4-12F-NPT | KSG4-12M-NPT | ||||||||
| 16 | 25 | 139.5 | 124.5 | 73.0 | 61.0 | 41.0 | 55.0 | 1"BSP | KSG4-16F-BSP | KSG4-16M-BSP |
| 1"NPT | KSG4-16F-NPT | KSG4-16M-NPT |
技術特性：
| 規格 | 最大工作壓力 | 額定流量 | 最大流量 | 最小爆破壓力 | 液體溢出量 | ||||||
| 接頭體 | 接頭套 | 連接下 | |||||||||
| 力浦液壓 | 國際標準 | (bar) | (l/m) | (l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 350 | 12 | 24 | 1800 | 1400 | 1500 | 1 | |||
| 06 | 10 | 300 | 23 | 46 | 1200 | 1800 | 1800 | 2 | |||
| 08 | 12.5 | 300 | 45 | 90 | 1000 | 1600 | 1600 | 3 | |||
| 12 | 20 | 250 | 106 | 220 | 1000 | 1000 | 1300 | 10 | |||
| 16 | 25 | 230 | 189 | 260 | 600 | 900 | 700 | 15 | |||

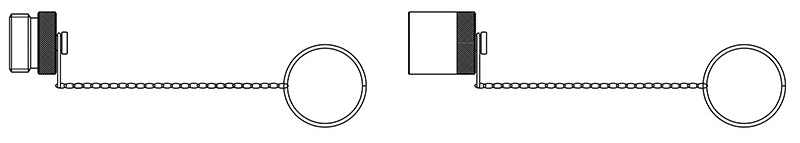

防塵帽塞：
| 力浦液壓 | 國際標準 | 母接頭防塵塞 | 母接頭防塵帽 | 材質 | |||
| 04 | 6.3 | KSG4-04-ADP | KSG4-04-ADC | Aluminum 鋁 | |||
| 06 | 10 | KSG4-06-ADP | KSG4-06-ADC | Aluminum 鋁 | |||
| 08 | 12.5 | KSG4-08-ADP | KSG4-08-ADC | Aluminum 鋁 | |||
| 12 | 20 | KSG4-12-ADP | KSG4-12-ADC | Aluminum 鋁 | |||
| 16 | 25 | KSG4-16-ADP | KSG4-16-ADC | Aluminum 鋁 | |||
